PRODUCT CENTER

Eutectic Cold Chain

Plate freezers, eutectic packs and insulated systems for dependable cold-chain transport.

Request quotation All products →

OVERVIEW

Built for dependable commercial operation.

Plate freezers, eutectic packs and insulated systems for dependable cold-chain transport.

NEW 10-SHELF EUTECTIC FREEZER

PF-10 Eutectic Deep Freezer

PF-10 is a 190-liter eutectic deep freezer with 10 sliding aluminum shelves and a system temperature of −35 to −40°C.

Request PF-10 quotation Download technical specification ↓

PF-10 · 10-shelf configuration

TECHNICAL HIGHLIGHTS

System temperature−35 to −40°C

Capacity190 L

Shelves10 sliding aluminum

External dimensions680 × 920 × 1,458 mm

Compressor1.50 HP × 1

Electrical220–240 V / 50 Hz / 1 Ph

Power consumption714 W max / 515 W nominal

Net weight165 kg

20' container18 units

40' container36 units

Ambient condition: not exceeding 35°C. Full construction, insulation, refrigerant and control details are available in the technical specification.

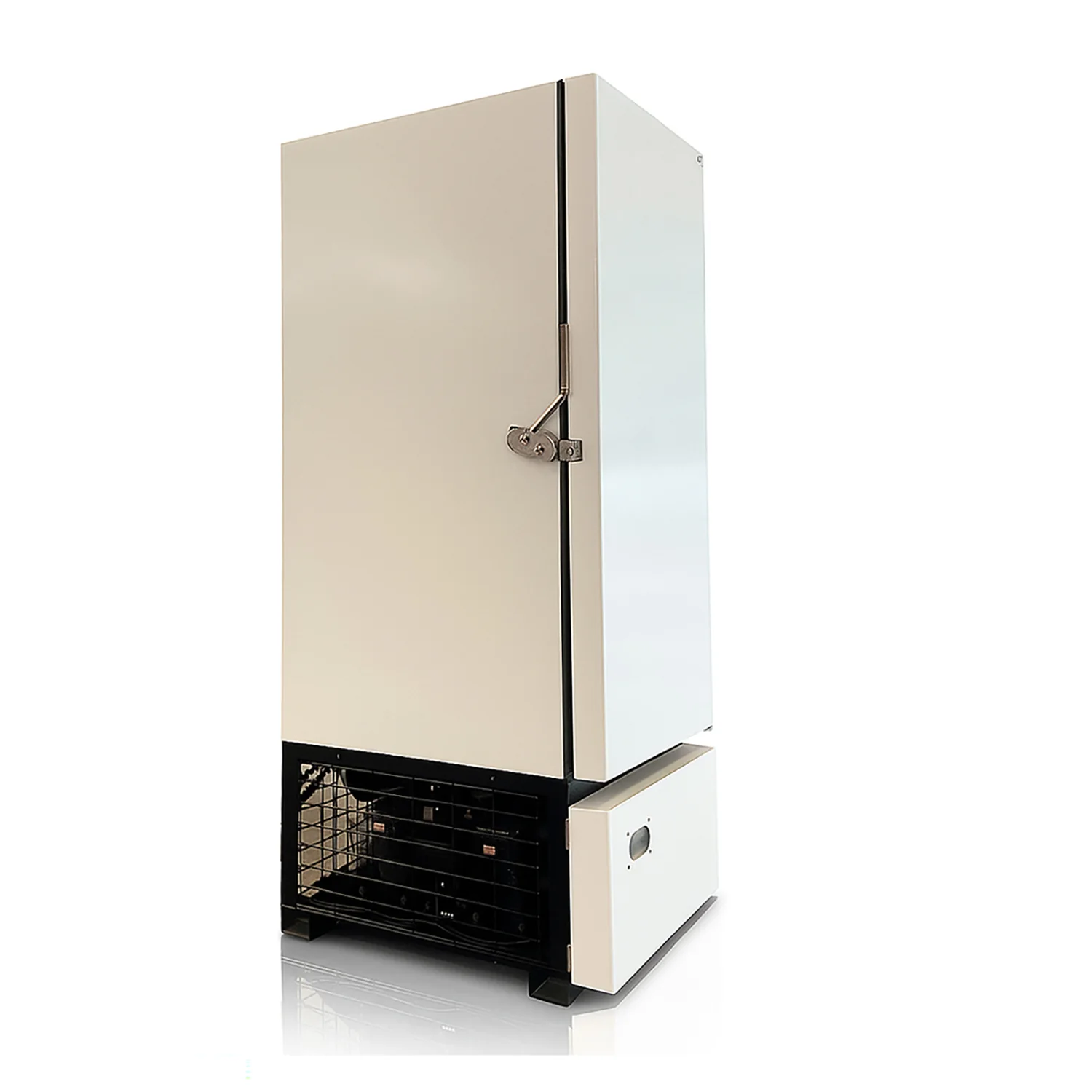

Front view

Three-quarter view

Rear service view

20-SHELF EUTECTIC FREEZER

PF-20 Eutectic Deep Freezer

PF-20 is a 320-liter eutectic deep freezer with 20 sliding aluminum shelves and a system temperature of −30 to −40°C.

Request PF-20 quotation Download catalogue ↓

PF-20 · 20-shelf configuration

TECHNICAL HIGHLIGHTS

System temperature−30 to −40°C

Capacity320 L

Shelves20 sliding aluminum

External dimensions670 × 895 × 1,970 mm

Compressor1.50 HP × 2

Electrical220–240 V / 50 Hz / 1 Ph

Power consumption1,474 W max / 1,030 W nominal

Net weight245 kg

20' container18 units

40' container36 units

Ambient condition: not exceeding 35°C. Full construction, insulation, refrigerant and control details are available in the catalogue.

Closed view

Interior view

Side view

EUTECTIC COLD STORAGE PACK

Eutectic Pack 2.20kg

A reusable eutectic cold-storage pack designed for chilled and frozen transport applications, with multiple available phase-change temperatures.

Request 2.20kg pack quotation Download catalogue ↓

2.20kg eutectic cold-storage pack

TECHNICAL HIGHLIGHTS

Nominal capacity2.20 kg

MaterialHDPE

Pack dimensions230 × 30 × 300 mm

Available temperatures−1 / −3 / −5 / −12 / −17 / −21 / −23 / −26 / −28°C

Phase-change mediumBrine solution + special additives

Casing sealingUltrasonic welded

Designed for long temperature holding in food preservation, vending and transportation applications. Refer to the catalogue for the complete product description and rough-in data.

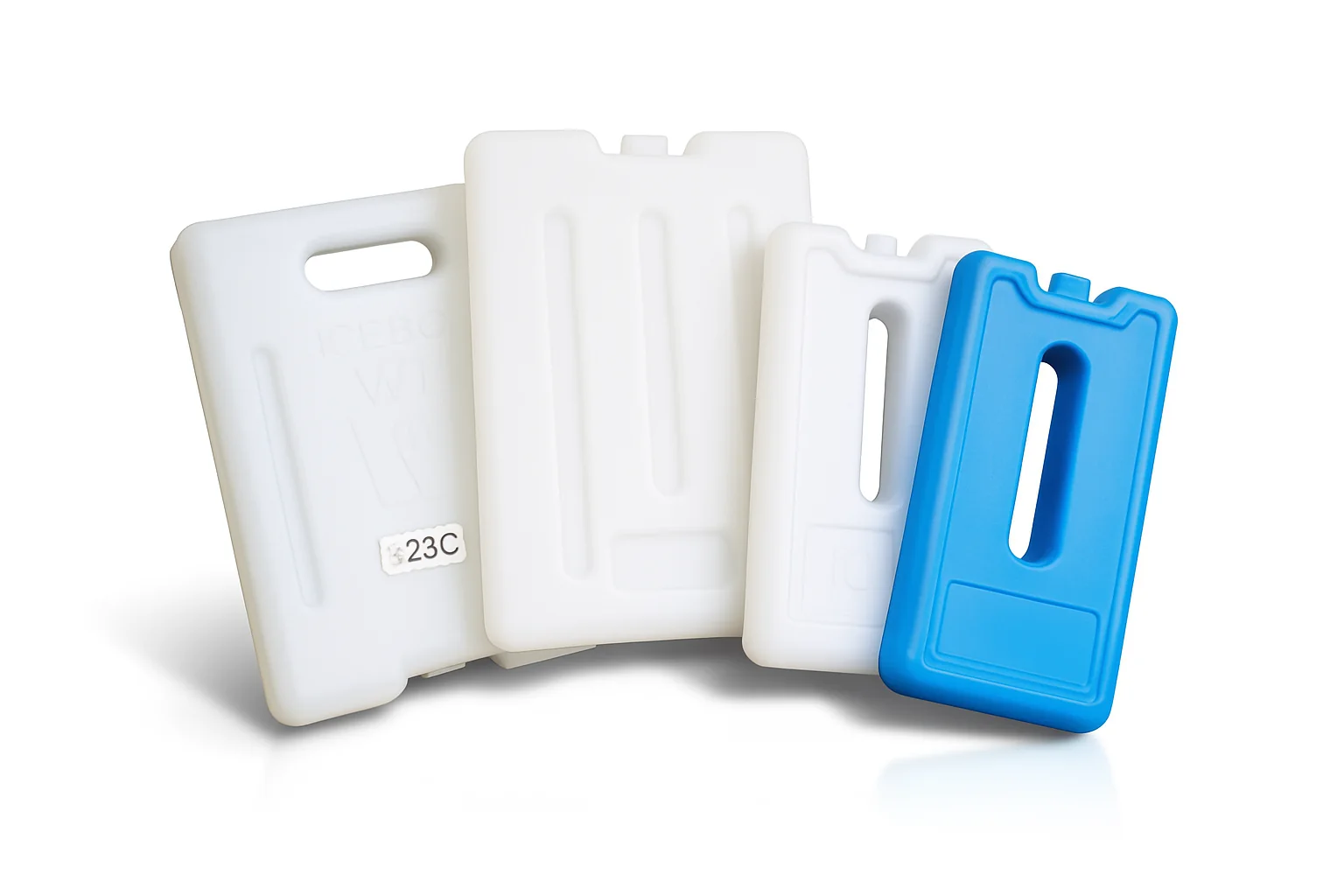

Eutectic pack range

Example −23°C configuration

PRODUCT GALLERY

Eutectic Cold Chain Products

01Commercial-grade construction

02OEM / ODM options

03Export packing support

REQUEST A QUOTATION

Share your required capacity, temperature and application.

Start enquiry

EUTECTIC COLD CHAIN

Engineering RFQ Request

Share your operating requirement for eutectic packs, insulated distribution and PF-10 / PF-20 recharging. PKI will verify the final configuration before quotation.

Secure & ConfidentialProject information is used for quotation review only.

1. CONTACT INFORMATION

Company *Contact person *Business email *Country / delivery city *

2. APPLICATION & TEMPERATURE

Application * Required product temperature * Required holding time Ambient / route condition

3. PACKS, BOXES & RECHARGING

Distribution box / container * Boxes per dispatch * Eutectic pack temperature Recharge freezer Dispatch cycles / day Electrical supply Required timeline Current pack / box information

4. ADDITIONAL INFORMATION (OPTIONAL)

Route / product / special requirements Attach specification / box drawing / requirementPDF, Word, Excel, JPG or PNG · maximum 10 MB.

Security check: 2 + 2 = ? *
